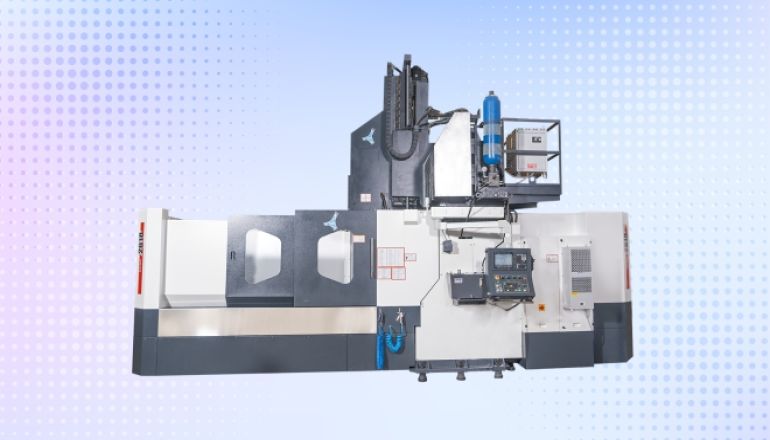

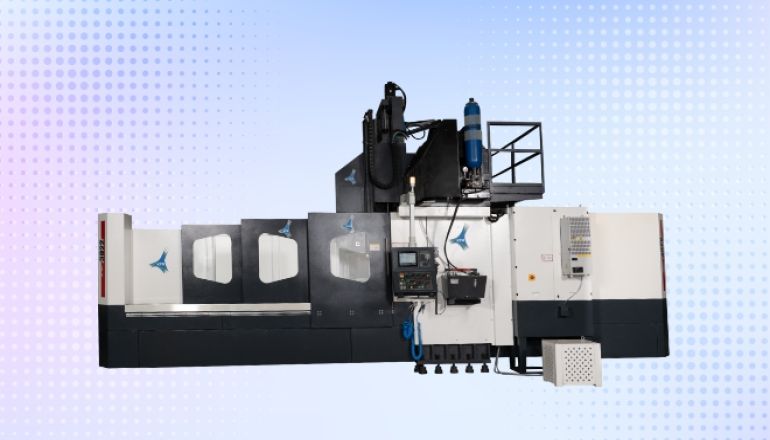

DCMC
DCMC
DCMC

Technical Specification

Description DCMC 2214 DCMC 2618 DCMC 3022 DCMC 3525 DCMC 4528 DCMC 6032 DCMC 8042
+ TABLE
Table Size (mm) 2200 x 1200 2600 x 1600 2800 x 2000 3200 x 2200 3750 x 2300 6000 x 3200 8000 x 4000
T- Slot Diamention (mm) 7 x 22 x160 8 x 22 x160 13 x 22 x 160 13 x 22 x160 14 x 22 x 160 18 x 22 x 160 22 X 22 X 160
Distance From Floor To table (mm) 940 850 900 1025 1040 1040 1014
Max.Load on Table (kgf) 5000 7000 10000 10000 14000 16000 20000
distance Between Two columns (mm) 1450 1900 2300 2600 2875 3500 4500
+ CAPACITY
X-Axis Travel (mm) 2200 2600 3000 3500 4500 6000 8000
Y-Axis Travel (mm) 1400 1800 2200 2500 2800 3200 4200
Z- Axis Travel (mm) 800 800(1000) 800(1000) 800(1000) 800(1000) 1000 1200
Dis.From Spindle Face To face Top(min-max) (mm) 200 200 200 200 200 200 - 1200 200 - 1400
+ FEED
Rapid Traverse(X,Y & Z axis) (m/min.) 20000/20000/150000 20000/20000/150000 20000/20000/150000 20000/20000/150000 20000/20000/150000 15/16/12 15/16/12
cutting Feed (m/min.) 10000 10000 10000 10000 10000 6 6
+ Main Spindle
Spindle Speed Range (rpm) 6000 6000 6000 6000 6000 6000 6000
Spindle Motor Power 15 min./cont. (Siemens) (kw) 22/18.5 22/18.5 22/18.5 22/18.5 22/18.5 22/26 22/26
Spindle Torque 15 min./Cont. (Siemens) (N-m) 234/117 234/117 234/117 234/117 234/117 - 234/117
Spindle Motor Power 15 min./cont. (Fanuc / Mitsubishi) (kw) 22/18.5 22/18.5 22/18.5 22/18.5 22/18.5 22/26 22/26
Spindle Torque 15 min./Cont. (Fanuc / Mitsubishi) (N-m) 191/118 191/118 191/118 191/118 191/118 223/140 223/140
Front Bearing Bore (mm) 100 100 100 100 100 100 100
Spindle Nose (mm) BT - 50 BT - 50 BT - 50 BT - 50 BT - 50 BT - 50 BT - 50
+ ATC
No.Of Tool (Nos.) 20 20 20 20 20 20 20
Max.Tool Dia.Pocket (all/adj.empty) (mm) 125/200 125/200 125/200 125/200 125/200 125/200 125/200
Max.Tool Weight (kg.) 15 15 15 15 15 15 15
Max.Tool Length (mm) 350 350 350 350 350 350 350
+ Accuracy ( As per Vdi/DCQ 3441)
Positioning Uncertainty (p) (mm) 0.02 0.02 0.02 0.02 0.02 0.04 0.06
Repeatability (Ps medium) (mm) 0.008 0.008 0.008 0.008 0.008 0.015 0.030
Machine Over All Diamensions (L x W x H) (mm) 6750x3800x4400 6750x3800x4400 7750x4200x4500 9350x4610x4700 11000 x 5350 x 5100 18000 X 6500 X 5500 25000 X 8500 X 6800
Wight (Approx) (kg.) 23000 23000 28000 34000 42000 65000 85000
Optional Feature
  • Chip Conveyor
  • Through Coolant Spindle
  • Direct Coupled Spindle
  • High Pressure Coolant Pump
  • Oil Skimmer
  • Spindle Oil Chiller
  • Probing System
  • 4th Axis Complete (Rotary Table with Motor Drive + Hydra Pneumatic Cylinders + Cables + Interfacing)
  • 4+1 = 5 Axis Complete (Rotary Tilting Table with Motor Drive + Hydra Pneumatic Cylinders + Cables + Interfacing)
  • Manual Tail Stock - Manual Chuck - Power Chuck
  • Clamping Kit
  • 100 to 200 mm Height Riser
  • Manul / Auto 90° Head
  • Manul / Auto Universal Head
  • Voltage Stabilizer
  • Motorized Spindle
  • Linear Scale
Standard Feature
  • Bed Construction Extra wide Design
  • Ball Screw with C3 Grade, Long Nut and Deep Groove with Zero Backlash
  • High Precision Grade Roller Type LM Guideways with Medium Pre loaded Extra Long Blocks
  • Digital Servo Spindle Motor
  • Taiwan Make High Speed Rigid Spindle with P4 Class Angular Contact Ball Bearings
  • Smart Tool Management System
  • Tool ATC with Lowest tool to tool Time
  • Advance Tool Call System (ATS)
  • Dry Air Cutting Nozzle with High Pressure and Flow
  • All Telescopic Cover in Stainless Steel Grade
  • Machine Guard with International Quality Powder Coated
  • Electric Pannel with Air Conditioner
  • High Pressure Coolant Unit
  • Auto Lubrication Unit and Coolant Unit
  • Ring Coolant, Coolant Tank
  • Pull Stud, T - Nut
  • Allen Key Set, Spanner Set
